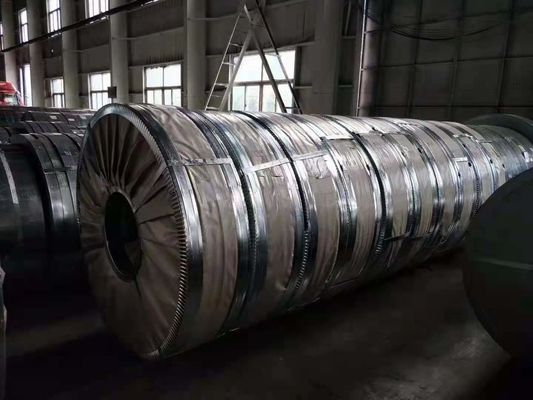

0.1mm-20mm Hot Dip Galvanized Coils Steel DX51D SGCC JIS G3302 Z60
| Place of Origin | China |
|---|---|
| Brand Name | WILKE |
| Certification | ISO MTC SGS |
| Model Number | Galvanized Steel Coil |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | Standard seaworthy packing or customer required |
| Delivery Time | 10-15 days after deposit |
| Payment Terms | T/T, L/C, Western Union |
| Supply Ability | 5000 Ton per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | SGCC Hot Dip Galvanized Steel DX51D | Thickness | 0.1mm-20mm |
|---|---|---|---|
| Width | 1000mm,as Required | Zinc Coating | Z25– Z175 |
| Spangle | Small Spangle,Big Spangle,Zero Spangle | Surface | Galvanized |
| Material | SGCC,DX51D | Edge | Mill Edge, Cut Edge |
| High Light | 0.1mm Hot Dip Galvanized Coils,JIS G3302 Hot Dip Galvanized Coils,DX51D Galvanized Steel Coil |
||
Product Description
JIS G3302 Z60 Hot Dip Galvanized Steel DX51D Galvanized Steel Coil SGCC
Galvanizing is one of the most effective and economical methods for protecting bare steel from corrosive environments.
Zinc is not only a barrier between steel and the environment, but also sacrifices itself to protect the steel plate below.
When two different metals are in contact and coupled with water and oxygen, sacrifice or current protection occurs.
Zinc preferentially corrodes iron in steel. This protection prevents corrosion of the steel in areas not covered by zinc.
Therefore, the diffusion of corrosion from cutting edges, drilling holes, etc. is minimized.
Product Description :
| Name | Galvanized Steel Coil |
| Technical Standard: | JIS 3302 / ASTM A653 / EN10143 / EN 10142 / EN 10147 /EN 10292, |
| Grade | DX51D / DX52D/ DX53D/ S250, S280, 320GD,SGCC |
| Types: | Commercial / Drawing / Deep Drawing / Structural quality |
| Width | 650/726/820/914/1000/1200/1219/1220/1250mm/1500mm |
| Thickness | 0.12-1.0mm (0.12-0.5mm is the most advantage thickness)1.0-4.0mm |
| Package Weight | 3-8tons per coil or as required |
| Type of coating: | Galvanized |
| Zinc coating | Z30-275g/m² |
| Hardness | HRB50-71(CQ Grade),HRB45-55(DQ Grade) |
| Tensile Strength | 270-500(CQ Grade),270-420(DQ Grade) |
| Surface treatment | Passivation(C),Oiling(O),Lacquer sealing(L),Phosphating(P),Untreated(U) |
| Surface structure: | zero spangle / minimized spangle / regular spangle/ big regular spangle |
| Application: |
Construction industry: to manufacture structural elements low-rise construction, light steel thin-walled structures, sandwich panels, lining of heat pipelines and various heat insulation, conditioning systems, metal roof shingle, profiled sheeting, culvert pipes, cladding of entry doors, elevators, reinforcement profiles for PVC windows and plastic doors, European-type fasteners for plasterboards, etc Automotive industry: to manufacture external and internal car body parts, as well as to repair external public transport body parts, eg for buses and trams) Machine building and instrumentation industries: to manufacture cases for electrical and mechanical equipment, home appliances, metering devices and packingManufacture houseware (tableware, bowls, buckets, tanks, baths, etc) Manufacture colour-coated (and other type of coating) rolled steel |
Packing & Delivery:
FAQ:
Q1. What are your company's main products?
A1: Our main products are Galvanized Steel Coil, Galvanized Steel Sheet, PPGI Steel Sheet, GI Roofing Sheet, PPGI Steel Coil etc.
Q2. How do you control quality?
A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO, SGS, Alibaba Verified.
Q3. What are the advantages of your company?
A3: We have specialized in the steel business for years, so we have mature production technology, stable capacity, more competitive prices,
we are dedicated to strict quality control and thoughtful customer service.
Q4. Can you provide a sample?
A4: We can provide the same samples in stock for free, as long as you contact us.
About us:
Wuxi Wilke Metal Materials Co., Ltd. is a leading supplier of high-quality galvanized steel materials. Established in 2012 in Wuxi, China, the company has quickly become a reputable and reliable supplier of metal materials to customers around the world.
At Wuxi Wilke Metal Materials Co., Ltd., we pride ourselves on providing superior quality products that meet international standards. Our products are sourced from reputable manufacturers who have a proven track record of delivering high-quality materials. We have established long-term relationships with these manufacturers, which enables us to offer our customers competitive prices and consistent product quality.
