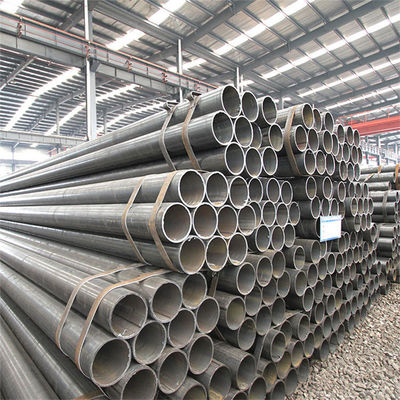

ASTM A333 Gr.6 Seamless Carbon Pipe Black Painting Low Temperature Steel Pipe

  • ASTM A333 Gr.6 Seamless Carbon Pipe Black Painting Low Temperature Steel Pipe
  • ASTM A333 Gr.6 Seamless Carbon Pipe Black Painting Low Temperature Steel Pipe
  • ASTM A333 Gr.6 Seamless Carbon Pipe Black Painting Low Temperature Steel Pipe
Place of Origin China
Brand Name BAO STEEL
Certification ISO MTC SGS
Model Number Carbon Steel Pipe
Minimum Order Quantity 1Ton
Price Negotiation
Packaging Details Standard seaworthy packing or customer required
Delivery Time 10-15 days after deposit
Payment Terms T/T, L/C
Supply Ability 5000 Ton per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name ASTM A333 Gr.6 Seamless Low Temperature Steel Pipe Grade Q345,Q235,20#,10#,Q195
Standard ASTM,GB,DIN,API,BS Thickness 4 - 100 Mm
Length 1-12m,or As Required Application Structure Pipe,Boiler Pipe,Oil Pipe,Gas Pipe
High Light

A333 Seamless Carbon Pipe

,

Gr.6 Seamless Carbon Pipe

,

A333 Low Temperature Steel Pipe
Leave a Message
Product Description

ASTM A333 Gr.6 Seamless Low Temperature Steel Pipe With Black Painting



ASTM A333 (ASME S/A-333) Pipe grades permit low temperature service. This specification covers nominal (average) walled pipe almost exclusively in seamless. Several grades of ferritic steel are included. Some product sizes may not be available under this specification because heavier wall thicknesses have an adverse effect on low-temperature impact properties. A333 pipe is furnished to nine different grades designated by numbers 1, 3, 4, 6, 7, 8, 9, 10, & 11. Discussed herein are Grades 1 and 6. The seamless pipes are drawn from a single billet of the material whereas the ASTM A333 Grade 6 Welded Pipe Specification mandates it be welded from a strip or sheet of the same material grade. The form of the pipes can vary as round or hydraulic in most cases.



Product Description :



Product Name ASTM A333 Low Temperature Steel Pipe
Dia. 10.3-3620mm
Length 3m -12m or as required
Thickness 1.25-60mm
Standard GB,ASTM,DIN,BS,JIS
Technique Cold drawn / Hot rolled
Surface Treatment 3PE/3LPE, FBE, Galvanized ETC.
Thickness Tolerance ±0.01mm~ ±0.25mm
Material ASTM A333
Application oil and gas, buildings, housing, and heavy equipment.
MOQ 1 ton , We can accept sample order.
Shipment Time Within 15-20 workdays after receiving deposit or workable L/C
Export Packing Waterproof paper, and steel strip packed.Standard Export Seaworthy Package.Suit for all kinds of transport,or as required
Capacity 250,000 tons/year



ASTM A333 Chemical Composition :



Chemical Composition of ASTM A333
Element Grade 1, % Grade 3, % Grade 4, % Grade 6, % Grade 7, % Grade 8, % Grade 9, % Grade 10, % Grade 11, %
C 0.3 0.19 0.12 0.3 0.19 0.13 0.2 0.2 0.1
Mn 0.40–1.06 0.31–0.64 0.50–1.05 0.29–1.06 0.9 0.9 0.40–1.06 1.15–1.50 0.6
P 0.025 0.025 0.025 0.025 0.025 0.025 0.025 0.035 0.025
S 0.025 0.025 0.025 0.025 0.025 0.025 0.025 0.015 0.025
Si ... 0.18–0.37 0.08–0.37 0.10 min 0.13–0.32 0.13–0.32 ... 0.10–0.35 0.35
Ni ... 3.18–3.82 0.47–0.98 0.4 2.03–2.57 8.40–9.60 1.60–2.24 0.25 35.0–37.0
Cr ... ... 0.44–1.01 0.3 ... ... ... 0.15 0.5
Cu ... ... 0.40–0.75 0.4 ... ... 0.75–1.25 0.15 ...
Al ... ... 0.04–0.30 ... ... ... ... 0.06 ...
V ... ... ... 0.08 ... ... ... 0.12 ...
Cb ... ... ... 0.02 ... ... ... 0.05 ...
Mo ... ... ... 0.12 ... ... ... 0.05 0.5
Co ... ... ... ... ... ... ... ... 0.5



*For Grade 1 and 6, each reduction of 0.01% C below 0.30%,

 an increase of 0.05 % Mn above 1.06 % would be permitted to a max. of 1.35%.

*For Grade 6, the limit for columbium may be increased up to 0.05 % on heat analysis and 0.06 % on product analysis.





ASTM A333 Physical properties :



ASTM A333 Tensile Strength, min. Yield Strength, min. Elongation %, min.
Grade psi MPa psi MPa Longitudinal Transverse
Grade 1 55 000 380 30 000 205 35 25
Grade 3 65 000 450 35 000 240 30 20
Grade 4 60 000 415 35 000 240 30 16.5
Grade 6 60 000 415 35 000 240 30 16.5
Grade 7 65 000 450 35 000 240 30 22
Grade 8 100 000 690 75 000 515 22 ...
Grade 9 63 000 435 46 000 315 28 ...
Grade 10 80 000 550 65 000 450 22 ...
Grade 11 65 000 450 35 000 240 18 ...
