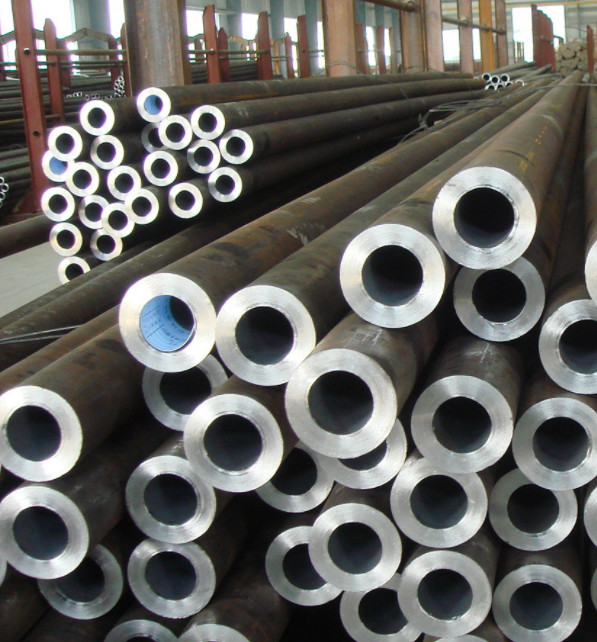

S235jr Q345 Carbon Steel Tube S235j2 Q235 Carbon Seamless Steel Pipe
| Place of Origin | China |
|---|---|
| Brand Name | BAO STEEL |
| Certification | ISO MTC SGS |
| Model Number | Carbon Steel Pipe |
| Minimum Order Quantity | 1Ton |
| Price | Negotiation |
| Packaging Details | Standard seaworthy packing or customer required |
| Delivery Time | 10-15 days after deposit |
| Payment Terms | T/T, L/C |
| Supply Ability | 5000 Ton per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | DIN S235JR/S235JO Carbon Steel Pipe | Grade | Ss400 S235jr S235jo S235j2 Q345 Q235 Q195 Q215 |
|---|---|---|---|
| Standard | ASTM,GB,DIN,API,BS | Thickness | 21.3-914.4mm |
| Length | 1-12m,or As Required | Application | Structure Pipe,Boiler Pipe,Oil Pipe,Gas Pipe |
| High Light | S235jr Carbon Steel Tube,Q345 Carbon Steel Tube,Q235 Carbon Seamless Steel Pipe |
||
Product Description
Carbon Steel Tube Ss400 S235jr S235jo S235j2 Q345 Q235 Q195 Q215 Carbon Seamless Steel Pipe
S235JR is a type of non-alloy steel, intended to be used for structural applications.
This particular steel grade ic categorised in Part 2 of the Euronorm specification EN 10025.
The letter capital S in the term EN 10025 S235JR Pipe signifies a structural steel that exhibits a minimum yield strength
properties of around 235 MPa. On the other hand, the letters with a designation JR confirms that the supply has been administered
a Charpy V-notch impact test. At room temperature, the value of the impact tests of the EN 10025 S235J2 Material stands at 27 joules.
EN 10025 S235JO Steel Pipe is a hot rolled product.
The EN 10025 specification refers to a set of European standards which cover structural steels in addition to specifying their technical delivery conditions as well.
Product Description :
|
Chemical Composition of S235JR :
| C | Mn | P | S | N | Cu | CEV |
| max 0.2 | max 1.4 | max 0.04 | max 0.04 | max 0.012 | max 0.55 | max 0.38 |
Physical properties of S235JR :
| Minimum yield strength Reh | Tensile strength Rm | Minimum elongation – A | Notch impact test | ||||||||||
| MPa | MPa | Lo = 5,65 * √So (%) | Temperature | Min. absorbed energy | |||||||||
| Nominal thickness(mm) | Nominal thickness(mm) | Nominal thickness (mm) | |||||||||||
| ≤16 | >16 | >40 | >63 | >80 | >100 | >3 | >100 | >3 | >40 | >63 | >100 | °C | J |
| ≤40 | ≤63 | ≤80 | ≤100 | ≤125 | ≤100 | ≤125 | ≤40 | ≤63 | ≤100 | ≤125 | |||
| 235 | 225 | 215 | 195 | 360-510 | 350-500 | 26 | 25 | 24 | 22 | 20 | 27 | ||
Seamless steel pipe has hollow section, which is widely used to transport fluid, such as oil, natural gas, gas,
water and some solid materials.
Compared with solid steel such as round steel, steel pipe is a kind of economic section steel with the same bending
and torsion strength and lighter weight.
According to the production method, seamless steel pipe can be divided into hot rolled seamless steel pipe,
cold rolled seamless steel pipe, cold drawn seamless steel pipe, extruded seamless steel pipe, pipe jacking, etc.
According to the cross-section shape, seamless steel pipe can be divided into round and special-shaped,
and the special-shaped pipe has many complex shapes, such as square, oval, triangle, hexagon, melon seed, star and finned pipe.
According to different uses, there are thick wall seamless steel pipe and thin wall seamless steel pipe.
ccording to different production methods, it can be divided into hot-rolled pipe, cold-rolled pipe, cold drawn pipe,
extruded pipe, pipe jacking, etc., with their own process regulations.
According to the use, it can be divided into two categories: general purpose (used for water supply, gas pipeline
and structural parts, mechanical parts) and special purpose (used for boiler, geological exploration, bearing, acid resistance, etc.).
Seamless steel pipe is mainly used for petroleum geological drilling pipe, cracking pipe for petrochemical industry,
boiler pipe, bearing pipe and high precision structural steel pipe for automobile, tractor and aviation.
FAQ :
Q1. What are your company's main products ?
A1: Our main products are Carbon Steel, Stainless Steel, Galvanized Steel Sheet, Coil, Tube, Bar, Profile etc.
Q2. How do you control quality ?
A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.
Q3. What are the advantages of your company ?
A3: We specialise in steel business for years,so we have mature production technology,stable capacit,more competitive price,
we dedicated to strict quality control and thoughtful customer service
Q4. Can you provide sample ?
A4: We can provide the samll samples in stock for free, as long as you contact us.
