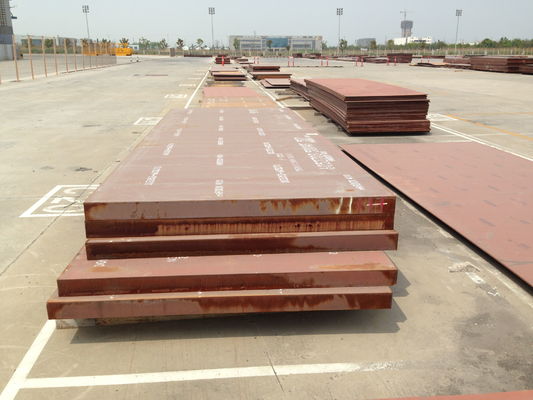

NM360 s Wear Resistant Steel Plate Hot Rolled 450 550 500 600
| Place of Origin | China |
|---|---|
| Brand Name | Tisco |
| Certification | ISO MTC SGS |
| Model Number | Wear Resistant Steel Plate |
| Minimum Order Quantity | 1Ton |
| Price | Negotiation |
| Packaging Details | Standard seaworthy packing or customer required |
| Delivery Time | 10-15 days after deposit |
| Payment Terms | T/T, L/C, Western Union |
| Supply Ability | 5000 Ton per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | 500 Wear Resistant Steel Plate | Thickness | 0.1mm-300mm Or As Required |
|---|---|---|---|
| Width | 1-2000mm | Length | 1-12000mm |
| Technique | Hot Rolled | Surface Treatment | Clean, Blasting And Painting According To Customer Requirement |
| Grade | S 450 550 500 600 | Tolerance | ±1%, 1%-3% |
| High Light | NM360 Wear Resistant Steel Plate,s Wear Resistant Steel Plate,Wear Resistant Plate |
||
Product Description
Hot rolled NM360 s 450 550 500 600 Wear Resistant Steel from Swedish steel plate
Structural Features
1.Wear-resisting steel plate is composed of low carbon steel plate and alloy wear-resisting layer. When working, the matrix provides comprehensive properties such as strength, toughness and plasticity of resisting external forces, and the alloy wear-resistant layer provides wear-resistant properties that meet the requirements of specified working conditions.
2.Wear-resisting steel alloy wear-resisting layer and base plate are metallurgical combination. By means of special equipment and automatic welding process, the high-hardness self-protecting alloy wire is uniformly welded on the substrate, and the composite layers are one to two or even more. In the composite process, due to the different shrinkage ratio of the alloy, uniform transverse cracks appear, which is a significant feature of the wear-resistant steel plate.
3.The wear resistant layer of the alloy is mainly chromium alloy, while manganese, molybdenum, niobium, nickel and other alloys are added. The microhardness of carbide can reach above hv1700-2000, and the surface hardness can reach hrc58-62. Carbide alloy has a strong stability at high temperature, maintain a high hardness, but also has a good oxidation resistance, within 500℃ completely normal use.
4.The wear-resistant layer has narrow channel (2.5-3.5mm), wide channel (8-12mm), curve (S, W), etc. It is mainly composed of chromium alloy, while manganese, molybdenum, niobium, nickel, boron and other alloy components are added. With 40-60% carbide content, the microhardness can reach above HV1700 and the surface hardness can reach hrc58-62.
Product Description :
| Product Nime | s 450 550 500 600 Wear Resistant Steel from Swedish steel plate |
| Related Material |
AR400,AR450,AR500,AR600,400,450,500,600, SB-50,SB45,XAR400,XAR450,XAR500,XAR600,Dillidur400,Dillidur500,QUARD400,QUARD450, QUARD500, FORA400,FORA500,Creusabro4800,Creusabro8000,Bisplate500,Bisplate400,Bisplate450, Mn13,B-HARD360, B-HARD400, B-HARD450, B-HARD500,RAEX400,RAEX450,RAEX500,ABREX400,ABREX450,ABREX500,ABREX600 |
| size | Thickness:3mm-120mm |
| width :1000mm~3500mm | |
| Length:1000mm~12000mm | |
| Price Term | FOB, CFR, CIF |
| Payment Term | T/T, L/C, Western Union |
| Delivery Time | According to the number of customers and requirements. |
| Package |
Export standard packing: wooden cases or boxes to be packed;We will pack the goods according to the factory's requirements for export. Or according to customer requirements.In addition, We will give the product good surface protection. |
| Application | Wear-resistant steel plate with high wear resistance and good impact performance is good, can be cutting, bending, welding, etc., can adopt welding, plug welding, bolt connection way to connect with other structures, such as the scene of the maintenance process possesses the characteristics of time saving, convenient and widely used in metallurgy, coal, cement, power, glass, mining, building materials, brick and tile industry, compared with other materials, has a high cost performance, has b |
Chemical Composition :
| Grade | C | Si | Mn | P | S | Cr | Ni | Mo | B |
| (max %) | (max %) | (max %) | (max %) | (max %) | (max %) | (max %) | (max %) | (max %) | |
| 400 | 0.32 | 0.7 | 1.6 | 0.025 | 0.01 | 1.4 | 1.5 | 0.6 | 0.004 |
Physical properties :
| Grade | Thickness | Hardness (HBW) | Yield strength (MPa) | Tensile strength (MPa) | Elongation A |
| 400 | 4.0 - 130.0 | 370-430 | 900 - 1100 | 1250 | 10 |
Hardness = Wear Resistance
Hardness is what gives steel its unique wear resistance and structural strength. Hardness minimizes wear since it is difficult for the ‘edges’ of abrasive material to cut into the material. grades deliver high wear resistance during the plate’s entire service life. Hardness also means it has excellent yield and tensile strength, properties that keep a structure in shape without being deformed.
Toughness = Safety
Toughness is the other strong point of wear plate. When hardness makes it wear resistant and strong, toughness is what makes it possible to bend, form and weld the material without cracking. If a wear plate is stressed beyond its yield point and plastically deformed—on purpose in the workshop or when hit by a heavy rock on site—it will resist cracking and if a localized crack should occur, it will resist propagation.
