ASTM A36 S335 SS400 HR Steel Plate Hot Rolled Carbon Steel Sheets 500
| Place of Origin | China |
|---|---|
| Brand Name | Tisco |
| Certification | ISO MTC SGS |
| Model Number | Wear Resistant Steel Plate |
| Minimum Order Quantity | 1Ton |
| Price | Negotiation |
| Packaging Details | Standard seaworthy packing or customer required |
| Delivery Time | 10-15 days after deposit |
| Payment Terms | T/T, L/C, Western Union |
| Supply Ability | 5000 Ton per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | ASTM A36 SS400 Teel Plate 500 | Thickness | 0.1mm-200mm |
|---|---|---|---|
| Width | 100mm-2000mm | Length | 100mm-12000mm |
| Technique | Hot Rolled | Surface Treatment | Clean, Blasting And Painting According To Customer Requirement |
| Grade | S 450 550 500 600 | Tolerance | ±1%, 1%-3% |
| High Light | S335 HR Steel Plate,SS400 HR Steel Plate,ASTM Steel Plate 500 |
||
Product Description

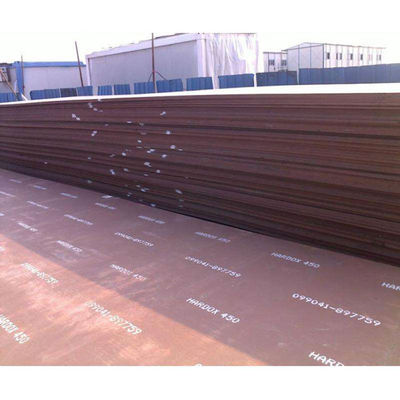

ASTM A36 S335 SS400 hot rolled carbon steel sheets HR steel plate 500
abrasion resistant steel sheets Dillidur400 plates 500HB hardness series wear resistant ar500 steel plate for sale Wear-resistant steel plates are currently the main industrial wear-resistant materials. For the convenience of engineers, the major wear-resistant steel plates are now classified according to the country as follows:
China wear plate grades: NM360, NM400, NM450, NM500, NR360, NR400, B-HARD360, B-HARD400, B-HARD450, KN-55, KN-60, KN-63
German wear-resistant steel plates: XAR400, XAR450, XAR500, XAR600, Dillidur400, Dillidur500
Belgium wear-resistant steel plates: QUARD400, QUARD450, QUARD500
French wear-resistant steel plate: FORA400, FORA500, Creusabro4800, Creusabro8000
Finnish wear-resistant steel plate: RAEX400, RAEX450, RAEX500
Japan wear-resistant steel plate: JFE-EH360, JFE-EH400, JFE-EH500, WEL-HARD400, WEL-HARD500
Product Description :
|
Chemical Composition :
| Grade | C | Si | Mn | P | S | Cr | Ni | Mo | B |
| (max %) | (max %) | (max %) | (max %) | (max %) | (max %) | (max %) | (max %) | (max %) | |
| 400 | 0.32 | 0.7 | 1.6 | 0.025 | 0.01 | 1.4 | 1.5 | 0.6 | 0.004 |
Physical properties :
| Grade | Thickness | Hardness (HBW) | Yield strength (MPa) | Tensile strength (MPa) | Elongation A |
| 400 | 4.0 - 130.0 | 370-430 | 900 - 1100 | 1250 | 10 |
Structural Features :
1.Wear-resisting steel plate is composed of low carbon steel plate and alloy wear-resisting layer. When working, the matrix provides comprehensive properties such as strength, toughness and plasticity of resisting external forces, and the alloy wear-resistant layer provides wear-resistant properties that meet the requirements of specified working conditions.
2.Wear-resisting steel alloy wear-resisting layer and base plate are metallurgical combination. By means of special equipment and automatic welding process, the high-hardness self-protecting alloy wire is uniformly welded on the substrate, and the composite layers are one to two or even more. In the composite process, due to the different shrinkage ratio of the alloy, uniform transverse cracks appear, which is a significant feature of the wear-resistant steel plate.
3.The wear resistant layer of the alloy is mainly chromium alloy, while manganese, molybdenum, niobium, nickel and other alloys are added. The microhardness of carbide can reach above hv1700-2000, and the surface hardness can reach hrc58-62. Carbide alloy has a strong stability at high temperature, maintain a high hardness, but also has a good oxidation resistance, within 500℃ completely normal use.
4.The wear-resistant layer has narrow channel (2.5-3.5mm), wide channel (8-12mm), curve (S, W), etc. It is mainly composed of chromium alloy, while manganese, molybdenum, niobium, nickel, boron and other alloy components are added. With 40-60% carbide content, the microhardness can reach above HV1700 and the surface hardness can reach hrc58-62.
