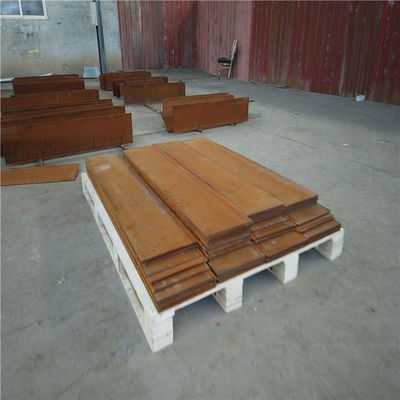

Customed HB 360 Nm 360 Wear High Strength Steel Plate AR 360 Hot Rolled
| Place of Origin | China |
|---|---|
| Brand Name | Tisco |
| Certification | ISO MTC SGS |
| Model Number | Wear Resistant Steel Plate |
| Minimum Order Quantity | 1Ton |
| Price | Negotiation |
| Packaging Details | Standard seaworthy packing or customer required |
| Delivery Time | 10-15 days after deposit |
| Payment Terms | T/T, L/C, Western Union |
| Supply Ability | 5000 Ton per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | HB360 Nm 360 Wear Resistant Steel Plate | Thickness | 0.5mm-200mm |
|---|---|---|---|
| Width | 1000mm | Length | 6000mm |
| Technique | Hot Rolled | Surface Treatment | Clean, Blasting And Painting According To Customer Requirement |
| Grade | S 450 550 500 600 | Tolerance | ±1%, 1%-3% |
| High Light | HB 360 High Strength Steel Plate,Nm 360 High Strength Steel Plate,HB 360 Wear Steel Plate |
||
Product Description
Customed High Strength Wear Plate AR 360 HB360 Nm 360 Wear Resistant Steel Plate
1.Power industry -- fan blades, burner pipelines, feeder and hopper lining, crusher parts, coal grinder parts, ash pipes,
air handling systems and conveyors;
2.& have spentIron and steel industry - hopper lining, grille, feeder and base, dump truck, hopper, pipe, pump shell,
crusher parts, slag trough, various chassis, vibrating screen;
3.cement industry - impact plate, pipe, pump shell, mill lining, crusher parts, slag groove, various chassis, vibrating screen
4.Paper industry -- inner lining of cyclone, screw conveyor, feeding trough and funnel, fan blade, conversion pipe, transition elbow;
5.Mining industry -- truck cargo tank lining board, hopper lining, feed tank lining, crusher parts, cover plate, wear rod and wear plate;
6.coal processing industry - conveying trough, hopper, crusher parts and lining plate, conveying pipe, elbow, pump body.
Product Description :
|
|
chemical composition
|
|||||||||
|
Grade
|
C
|
Si
|
Mn
|
P
|
S
|
Cr
|
Ni
|
Mo
|
T
|
|
≤
|
|||||||||
|
NM300
|
0.23
|
0.70
|
1.60
|
0.025
|
0.015
|
0.70
|
0.50
|
0.40
|
0.050
|
|
NM360
|
0.25
|
0.70
|
1.60
|
0.025
|
0.015
|
0.80
|
0.50
|
0.50
|
0.050
|
|
NM400
|
0.30
|
0.70
|
1.60
|
0.025
|
0.010
|
1.0
|
0.70
|
0.50
|
0.050
|
|
NM450
|
0.35
|
0.70
|
1.70
|
0.025
|
0.010
|
1.1
|
0.80
|
0.55
|
0.050
|
|
NM500
|
0.38
|
0.70
|
1.70
|
0.020
|
0.010
|
1.2
|
1.00
|
0.65
|
0.050
|
|
Mechanical property |
||||
|
Grade
|
Thickness(mm)
|
tensile strength(MPa)
|
Elongation A(%)
|
Surface Brinell hardness(HBW)
|
|
NM300
|
≤80
|
≥1000
|
≥14
|
270-330
|
|
NM360
|
≤80
|
≥1100
|
≥12
|
330-390
|
|
NM400
|
≤80
|
≥1200
|
≥10
|
370-430
|
|
NM450
|
≤80
|
≥1250
|
≥7
|
420-480
|
|
NM500
|
≤70
|
-
|
-
|
≥470
|
|
Grade comparison
|
|
|
GB
|
NM300,NM360,NM400,NM450,NM500
|
|
SS
|
400,450,500,600
|
|
DIN
|
XAR400,XAR450,XAR500,XAR600,Dillidur400,Dillidur500
|
|
NBN
|
QUARD400,QUARD450,QUARD500
|
|
NF
|
FORA400,FORA500,Creusabro4800,Creusabro8000
|
|
JIS
|
JFE-EH360, JFE－EH400,JFE－EH500,WEL-HARD400,WEL-HARD500
|
|
SFS
|
RAEX400,RAEX450,RAEX500
|
Structural Features :
1.Wear-resisting steel plate is composed of low carbon steel plate and alloy wear-resisting layer. When working, the matrix provides comprehensive properties such as strength, toughness and plasticity of resisting external forces, and the alloy wear-resistant layer provides wear-resistant properties that meet the requirements of specified working conditions.
2.Wear-resisting steel alloy wear-resisting layer and base plate are metallurgical combination. By means of special equipment and automatic welding process, the high-hardness self-protecting alloy wire is uniformly welded on the substrate, and the composite layers are one to two or even more. In the composite process, due to the different shrinkage ratio of the alloy, uniform transverse cracks appear, which is a significant feature of the wear-resistant steel plate.
3.The wear resistant layer of the alloy is mainly chromium alloy, while manganese, molybdenum, niobium, nickel and other alloys are added. The microhardness of carbide can reach above hv1700-2000, and the surface hardness can reach hrc58-62. Carbide alloy has a strong stability at high temperature, maintain a high hardness, but also has a good oxidation resistance, within 500℃ completely normal use.
4.The wear-resistant layer has narrow channel (2.5-3.5mm), wide channel (8-12mm), curve (S, W), etc. It is mainly composed of chromium alloy, while manganese, molybdenum, niobium, nickel, boron and other alloy components are added. With 40-60% carbide content, the microhardness can reach above HV1700 and the surface hardness can reach hrc58-62.
