DX51d 0.18mm 2mm Galvanised Sheet Hot Dip Slightly Oiled

Place of Origin China
Brand Name WILKE
Certification BIS JIS API ce RoHS SNI BIS SASO PVOC SONCAP SABS sirm tisi KS JIS GS ISO9001
Model Number DX51d
Minimum Order Quantity 5 tons
Price Negotiation
Packaging Details rust proof paper protected and bundled bu iron belt
Delivery Time 3-21work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 10000+ton/tons+month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Technique Cold Rolled&Hot Rolled Standard AiSi, ASTM, Bs, DIN, GB, JIS
Type Steel Coil, Galvanized Steel Coils Surface Treatment Galvanized
Length As Customers Required Coating Z10-Z29
Steel Grade DX51d Payment 30% In Advance,70% Before Shipping
High Light

2mm Hot Dip Galvanised Sheet

,

0.18mm 2mm Galvanised Sheet

,

ASTM gi galvanized sheet

Leave a Message
Product Description
0.18mm-20mm Thick Galvanized Steel Sheet 2mm Thick Hot Dip Galvanized Steel




Production Description

  Hot-dip galvanized steel sheet. The thin steel plate is immersed in the molten zinc tank, so that a thin steel plate with a layer of zinc is adhered to the surface. At present, it is mainly produced by continuous galvanizing process, that is, continuous immersion of rolled steel sheets in a galvanizing tank with molten zinc to make galvanized steel sheets; alloyed galvanized steel sheets. This kind of steel plate is also manufactured by hot dipping, but immediately after it is discharged from the tank, it is heated to about 500°C to form an alloy film of zinc and iron. This kind of galvanized sheet has good paint adhesion and weldability; electro-galvanized steel sheet. The galvanized steel sheet produced by the electroplating method has good workability.

  However, the coating is thinner, and the corrosion resistance is not as good as hot-dip galvanized steel; single-sided and double-sided poorly galvanized steel. Single-sided galvanized steel sheet is a product that is galvanized on only one side. In welding, painting, anti-rust treatment, processing, etc., it has better adaptability than double-sided galvanized sheet. In order to overcome the shortcomings of uncoated zinc on one side, there is another kind of galvanized sheet coated with a thin layer of zinc on the other side, namely double-sided differential galvanized sheet; alloy, composite galvanized steel sheet. It is a steel plate made of zinc and other metals such as lead and zinc alloys and even composite plating. This kind of steel plate not only has excellent anti-rust performance, but also has good coating performance. In addition to the above five types, there are color galvanized steel sheets, printed coated galvanized steel sheets, polyvinyl chloride laminated galvanized steel sheets, etc. But currently the most commonly used is still hot-dip galvanized sheet. Galvanized steel sheets can be divided into general use, roof use, building exterior panel use, structural use, corrugated sheet use, drawing use and deep drawing use.


Specification

Equivalent Material



Grade Euronorm China GB Japanese JIS US ASTM German
EN10130-2006 GBT 2518-2008 JIS: G3302-2005 ASTM A653M Q/SGZGS 324.3-2011
DX51D+Z DC01 DC01 SPCC CS TypeC St12
DX52D+Z DC03 DC03 SPCD CS TypeA TypeB St13
DX53D+Z DC03 DC03 SPCE CS TypeA TypeB St14
DX54D+Z DC06 DC06 SPCG EDDS St16



Standard Specification



Thickness 0.12~4mm
Width 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length 1000-6000 or Since the custom
Surface Normal (uneven) spangle/ Skinpassed spangle/ Regular spangle / Minimized spangles
Form coils, Foils, Rolls, Plain coils, Shim coils, Perforated coils, Chequered coils, Strips, Flats,
Blank (Circle), Ring (Flange) etc.

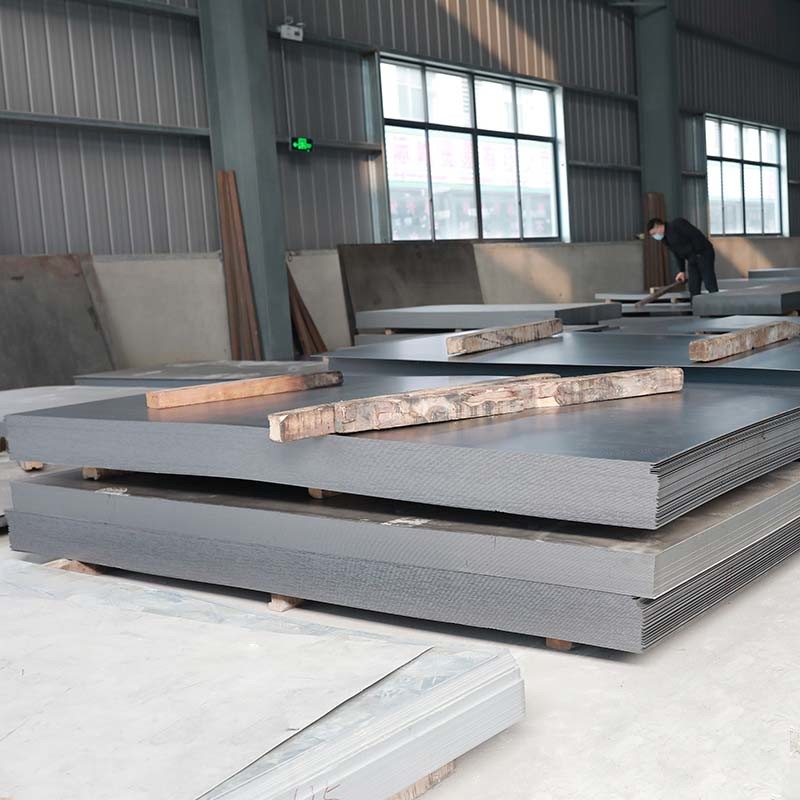

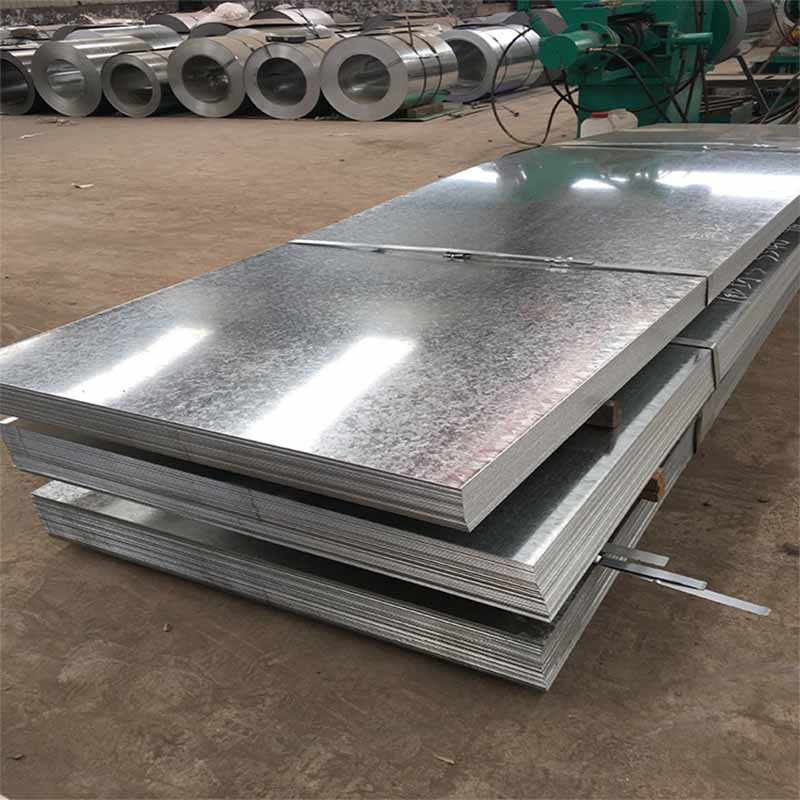

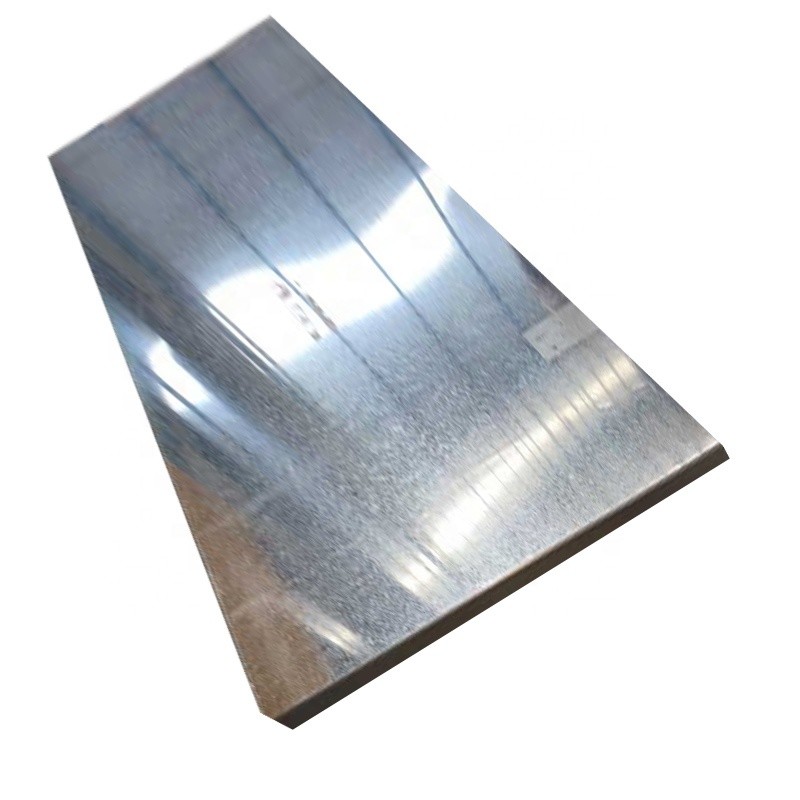

Product Pictures

DX51d 0.18mm 2mm Galvanised Sheet Hot Dip Slightly Oiled 0DX51d 0.18mm 2mm Galvanised Sheet Hot Dip Slightly Oiled 1DX51d 0.18mm 2mm Galvanised Sheet Hot Dip Slightly Oiled 2












FAQ:

Q1. What are your company's main products?
A1: Our main products are Galvanized Steel Coil, Galvanized Steel Sheet, PPGI Steel Sheet, GI Roofing Sheet, PPGI Steel Coil etc.

Q2. How do you control quality?
A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO, SGS, Alibaba Verified.

Q3. What are the advantages of your company?
A3: We have specialized in the steel business for years, so we have mature production technology, stable capacity, more competitive prices,
we are dedicated to strict quality control and thoughtful customer service.

Q4. Can you provide a sample?
A4: We can provide the same samples in stock for free, as long as you contact us.
