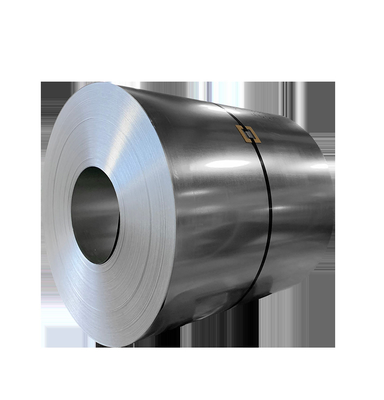

Galvanized Steel Sheet Coil With Excellent Corrosion Resistance And Workability
Place of Origin | China |
---|---|
Brand Name | WILKE |
Certification | BIS JIS API ce RoHS SNI BIS SASO PVOC SONCAP SABS sirm tisi KS JIS GS ISO9001 |
Model Number | Z40 Z60 |
Minimum Order Quantity | 3 tons |
Price | Negotiate |
Packaging Details | rust proof paper protected and bundled bu iron belt |
Delivery Time | 3-21work days |
Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability | 10000+ton/tons+month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xTechnique | ±1% | Tolerance | Zero Spangle |
---|---|---|---|
Length | As For Your Requirement | Zinc Coating | 30-600g/m2 |
Application | Construction Decoration | Size | 0.2mm ~ 6mm 1000mm~1500mm |
Processing Service | Bending, Welding, Decoiling, Punching, Cutting | Product Name | Galvanized Steel Coil |
High Light | Excellent Workability Galvanized Steel Sheet Coil,Corrosion Resistance Galvanized Steel Sheet Coil |
Is galvanized steel better than steel?
Galvanized Steel vs. Stainless Steel - Unified Alloys
Galvanized steel offers excellent resistance against water and chlorine but pales in comparison to stainless steel's corrosion resistance when dealing with marine environments. The protective layer on galvanized is also not self-healing like the passive layer on stainless steel.
Product Description
Hot Dipped Galvanized Steel Coil (GI coil) is produced by passing the Full Hard sheet which has undergone the acid washing process and rolling process through the zinc pot, thereby applying zinc film to the surface.It has excellent corrosion resistance, paintability, and workability due to Zinc’s characteristic.
Product Specification
Thickness
|
0.10~6mm
|
Width
|
Galvanized steel strip:24-600 mm; galvanized steel coil:600-1250mm
|
Coil weight
|
Usually is 3-4.5 tons,the max coil is 10 tons
|
Zn coating
|
0.1-0.8 mm is 30-150 g/m2; 0.8-1.5 mm is 30-180 g/m2;1.5-6.0 mm is 30-275 g/m2
|
Coil ID
|
600-1500 mm,Normal width is 91 4/1000/1219/1250/1500 mm
|
Steel grade
|
DX51D,DX52D,DC01,DC02,SGHC
|
Surface
|
regular/mini/big/zero spangle,skin pass, chromated, unoiled, dry
|
Packaging
|
seaworthy export standard package, or according to the customers'requirement
|
MOQ
|
1 ton , We can accept sample order.
|
Shipment Time
|
Within 5-10 workdays after receiving deposit
|
Our advantage
Whether you need structural steel, complex miscellaneous metals, or stock steel material you will get:
1. The Right Material, First Time: Quality is the hallmark of our reputation.
2. On Time Delivery: Your projects stay on schedule.
3. Ongoing Communication: Everyone is fanatically responsive to your needs. We handle the project so there are no surprises for you.
4. ISO and SGS Certification: We help you meet your goals plus the goals of your owners/customers.
Galvanized roll production process
Hot -soaking galvanized: Immersed the steel roll into the melted zinc groove, and forms a zinc layer on the surface of the steel roller by hot -dip galvanizing. This process can form a zinc layer with uniform thickness and strong adhesion, which is the most common galvanized method.
Galvanized: Dedicated a layer of zinc on the surface of the steel roll through an electrolytic reaction. The zinc layer of the electroplating is thin, but its surface is smooth and suitable for products with higher appearance requirements.
Features of galvanized rolls
Strong corrosion resistance: Zinc layer can effectively isolate air and water to prevent steel rust.
Good processing performance: Galvanized rolls are easy to cut, weld and form, and are suitable for various secondary processing processes.
High durability: The zinc layer provides additional protection, making galvanized rolls longer life life in various harsh environments.
Product | Galvanized steel coil |
Grade |
SGCC, SGHC, CGCC, DC51D, DX51D, DX52D, DX53D, DX54D, SGH340,SGH400,SGH440,SGH490,SGH540, SGC340,SGC400,SGC440,SGC490,SGC570 |
Standard | ASTM A653, JIS G3321, GB/T2518 |
Raw material |
SPHC, SPCC, SPCD, SPCE, DC01, DC11 S220GD, S250GD, S280GD, S320GD, S350GD, S400GD, S500GD, S550GD |
Technique | Cold rolled and Hot rolled |
Spangle |
Zero spangle, Mini spangle, Regular spangle, Big spangle |
Surface treatment | Chromed, Skin pass, oiled, non-oiled, slightly oiled, dry |
Zinc coating | 20-275g/m2 |
Width | 600mm-1250mm, according to customers’ requirement |
Thickness |
Cold Rolled: 0.12mm~4.0mm Hot Rolled: 4.0~100mm |
Tolerance | ±0.01mm (thickness) |
Coil weight | 3-8 MT or as you required |
Place of Origin | Shandong, China |
Processing | Customer’s requirement |
