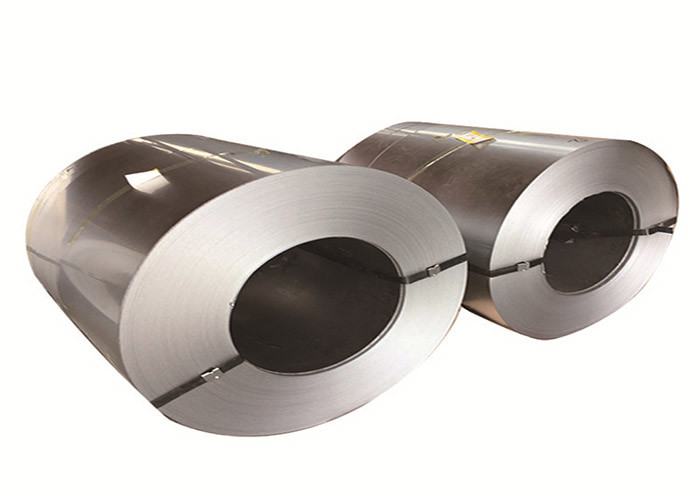

Electro Gi Galvanized Steel Coil Z275 SECC E16 0.3mm Thickness

Place of Origin China
Brand Name WILKE
Certification ISO MTC SGS
Model Number Galvanized Steel Coil
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Standard seaworthy packing or customer required
Delivery Time 10-15 days after deposit
Payment Terms T/T, L/C, Western Union
Supply Ability 5000 Ton per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Electro Galvanized Gi Steel Coil For Sale Thickness 0.1mm-20mm
Width 1000mm,1250mm,1500mm Length As Required
Zinc Coating Z20-Z275 Surface Treatment Chromate Treatment, Phosphate Treatment, Oiling
Material SGCC/TS350GD/TS550GD/DX51D+Z/Q195-Q345 Spangle Regular Spangle
High Light

0.3mm Galvanized Steel Coil


Gi Galvanized Steel Coil



Leave a Message
Product Description


0.3mm Thickness SECC E16 Electro Z275 Galvanized Gi Steel Coil For Sale


The appearance of electro-galvanizing is relatively smooth and bright,

and the electroplating layer using the color passivation process is also mainly yellow-green, showing color.

The electroplating layer using the white passivation process is bluish-white or white and green,

and the coating layer of the white passivation process is slightly colorful at a certain angle to the sunlight.

In the corners and edges of complex workpieces, it is easy to produce "electric burning" and become gray,

and the zinc layer in this part is thicker.

It is easy to form a current dead angle in the inner corner, resulting in an undercurrent dark area,

and the zinc layer in this area is relatively thin. The workpiece has no zinc nodules, aggregation or other phenomena.

The appearance of hot-dip galvanizing is slightly rougher than that of electro-galvanizing, and it is silver-white.

The appearance is prone to process water lines and a little drip, especially at one end of the workpiece.

However, the zinc layer of hot-dip galvanizing is dozens of times thicker than that of electro-galvanizing,

and the corrosion resistance is dozens of times that of electro-galvanizing.


Product Description :


Equivalent Material


Grade Euronorm China GB Japanese JIS US ASTM German
EN10130-2006 GBT 2518-2008 JIS: G3302-2005 ASTM A653M Q/SGZGS 324.3-2011
DX51D+Z DC01 DC01 SPCC CS TypeC St12
DX52D+Z DC03 DC03 SPCD CS TypeA TypeB St13
DX53D+Z DC03 DC03 SPCE CS TypeA TypeB St14


Standard Specification


Thickness 0.12~4mm
Width 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length 1000-6000 or Since the custom
Surface Normal (uneven) spangle/ Skinpassed spangle/ Regular spangle / Minimized spangles
Form coils, Foils, Rolls, Plain coils, Shim coils, Perforated coils, Chequered coils, Strips, Flats,
Blank (Circle), Ring (Flange) etc.



Electro Gi Galvanized Steel Coil Z275 SECC E16 0.3mm Thickness 0

 Electro Gi Galvanized Steel Coil Z275 SECC E16 0.3mm Thickness 1

Packing & Delivery:
Electro Gi Galvanized Steel Coil Z275 SECC E16 0.3mm Thickness 2


Q1. What are your company's main products?
A1: Our main products are Galvanized Steel Coil, Galvanized Steel Sheet, PPGI Steel Sheet, GI Roofing Sheet, PPGI Steel Coil etc.

Q2. How do you control quality?
A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO, SGS, Alibaba Verified.

Q3. What are the advantages of your company?
A3: We have specialized in the steel business for years, so we have mature production technology, stable capacity, more competitive prices,
we are dedicated to strict quality control and thoughtful customer service.

Q4. Can you provide a sample?
A4: We can provide the same samples in stock for free, as long as you contact us.
