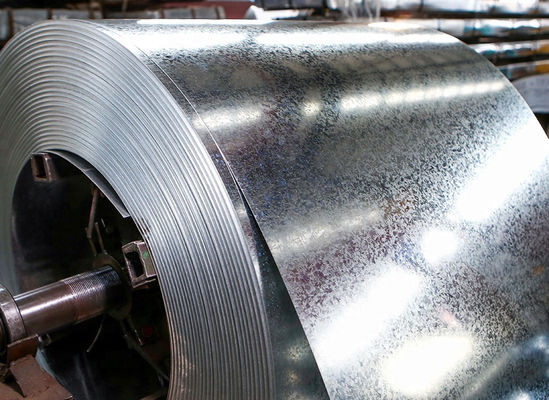

Zinc Coated Hot Dipped Cold Rolled Galvanized Steel Coil With Gauge 22 24 28 30

Place of Origin China
Brand Name WILKE
Certification ISO MTC SGS
Model Number Galvanized Steel Coil
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Standard seaworthy packing or customer required
Delivery Time 10-15 days after deposit
Payment Terms T/T, L/C, Western Union
Supply Ability 5000 Ton per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Zinc Coated Hot Dipped Galvanized Steel Coil Thickness 0.12-4mm
Width 600mm-2000mm Length As Required
Zinc Coating Z20-Z275 Material DX51D+Z, DC01, SPCC, CS TypeC, St12
Surface Normal (uneven) Spangle/ Skinpassed Spangle/ Regular Spangle / Minimized Spangles
High Light

Zinc Coated Galvanized Steel Coil

,

Cold Rolled Galvanized Steel Coil

,

22 Gauge Galvanized Steel

Leave a Message
Product Description



Zinc Hot Dipped Cold Rolled Galvanized Steel Coil with Gauge 22 24 28 30



Galvanized sheet coils, literally, are galvanized sheets in coils. The galvanized coil is the predecessor of the galvanized sheet.

The galvanized coil is cut into sheets by equipment. The galvanized coil is placed on the shelf with a forklift or aerial crane, and then transferred, flattened and cut by the equipment. The widths are all standard widths of one meter, one meter twenty-five, and one meter five, and the length is optional.



Galvanized Steel Coil Features:

1. The galvanized steel coil is widely used in various environments and has a long anti-corrosion life. The anti-corrosion life is different in different environments.

The processing cost is low, and the anti-corrosion cost of galvanized steel coil is lower than other paint coatings.

2. Durable, in the suburban environment, the standard galvanized anti-corrosion layer does not need to be repaired and can be maintained for more than 50 years. In cities or offshore areas, the standard galvanized anti-corrosion coating can be maintained for 20 years without repairs.

Good reliability. The galvanized layer and the steel are metallurgically combined and become part of the rigid surface, so the durability of the coating is relatively reliable.

3. The coating has strong toughness, and the zinc coating forms a special metallurgical structure, which can withstand mechanical damage during transportation and use.

4. Integrity protection: All parts of the plated parts can be galvanized, even in recesses, sharp corners and hidden places can be fully protected.

It saves time and effort. The galvanizing construction speed is faster than other coating construction methods, which can avoid the time required for on-site painting after installation.




Product Description:


Specifications Zinc Coated Hot Dipped Galvanized Steel Coil
Application Commercial Quality
Usage Furniture, Computer Case, Electronic Parts, Electrical Equipment
Type of Surface Treatment Normal (uneven) spangle/ Skinpassed spangle/ Regular spangle / Minimized spangles
Available Size Thickness: 0.12-4mm
Width: 600-2000mm
Coating Weight: 20-275g/m
Max. Coil Weight: ≦ 20 MT
MOQ 3 tons per color/ size
Supply Ability 5000t/month
Delivery Time Within 15 days after receiving the pre-payment.
Export Packing Standard Export Seaworthy Package.
Payment Terms L/C at sight, T/T or Negotiable.





Zinc Coated Hot Dipped Cold Rolled Galvanized Steel Coil With Gauge 22 24 28 30 0



Equivalent Material



Grade Euronorm China GB Japanese JIS US ASTM German
EN10130-2006 GBT 2518-2008 JIS: G3302-2005 ASTM A653M Q/SGZGS 324.3-2011
DX51D+Z DC01 DC01 SPCC CS TypeC St12
DX52D+Z DC03 DC03 SPCD CS TypeA TypeB St13
DX53D+Z DC03 DC03 SPCE CS TypeA TypeB St14
DX54D+Z DC06 DC06 SPCG EDDS St16



Standard Specification



Thickness 0.12~4mm
Width 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length 1000-6000 or Since the custom
Surface Normal (uneven) spangle/ Skinpassed spangle/ Regular spangle / Minimized spangles
Form coils, Foils, Rolls, Plain coils, Shim coils, Perforated coils, Chequered coils, Strips, Flats,
Blank (Circle), Ring (Flange) etc.





Zinc Coated Hot Dipped Cold Rolled Galvanized Steel Coil With Gauge 22 24 28 30 1



Metal Content



Grade C Mn P S
DX51D+Z
0.2 0.25 0.02 0.02
DX52D+Z
0.1 0.45 0.03 0.03
DX53D+Z
0.12 0.5 0.04 0.04
DX54D+Z
  0.15 0.6 0.1 0.05



  • Tensile strength: ≥270 MPa
  • Yield strength: 120~280 MPa
  • Elongation: 28~38%



Hot-dip galvanized layer formation process



The formation process of the hot-dip galvanizing layer is the process of forming an iron-zinc alloy between the iron matrix and the outermost pure zinc layer. The iron-zinc alloy layer is formed on the surface of the workpiece during hot-dip coating, which makes the iron and pure zinc layers very close. Good combination, the process can be simply described as when the iron workpiece is immersed in molten zinc, a solid solution of zinc and α iron (body core) is first formed on the interface. This is a crystal formed by dissolving zinc atoms in the base metal iron in a solid state. The two metal atoms are fused, and the attraction between the atoms is relatively small. Therefore, when zinc reaches saturation in the solid solution, the two element atoms of zinc and iron diffuse each other, and the zinc atoms that have diffused (or infiltrated) into the iron matrix migrate in the matrix lattice, and gradually form an alloy with iron, and diffuse The iron and zinc in the molten zinc form an intermetallic compound FeZn13, which sinks into the bottom of the hot-dip galvanizing pot, which is called zinc dross. When the workpiece is removed from the zinc immersion solution, a pure zinc layer is formed on the surface, which is a hexagonal crystal. Its iron content is not more than 0.003%.




Packing & Delivery:

Zinc Coated Hot Dipped Cold Rolled Galvanized Steel Coil With Gauge 22 24 28 30 2


FAQ:

Q1. What are your company's main products?
A1: Our main products are Galvanized Steel Coil, Galvanized Steel Sheet, PPGI Steel Sheet, GI Roofing Sheet, PPGI Steel Coil etc.

Q2. How do you control quality?
A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO, SGS, Alibaba Verified.

Q3. What are the advantages of your company?
A3: We have specialized in the steel business for years, so we have mature production technology, stable capacity, more competitive prices,
we are dedicated to strict quality control and thoughtful customer service.

Q4. Can you provide a sample?
A4: We can provide the same samples in stock for free, as long as you contact us.
