ASTM 0.2mm 1.5mm G90 Galvanized Steel Sheet Z275 SGCC Regular Spangle

Place of Origin China
Brand Name WILKE
Certification BIS JIS API ce RoHS SNI BIS SASO PVOC SONCAP SABS sirm tisi KS JIS GS ISO9001
Model Number Z275
Minimum Order Quantity 5 tons
Price Negotiation
Packaging Details rust proof paper protected and bundled bu iron belt
Delivery Time 3-21work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 10000+ton/tons+month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard AiSi, ASTM, Bs, DIN, GB, JIS Length Customer's Requirement
Technology Hot Rolled Cold Rolled Grade Galvanized Steel Plate
Application Build Sector, Automotive, Agricultural And Other Areas Processing Service Bending, Welding, Decoiling, Punching, Cutting
Alu-Zinc Coating 30-275 G/m2 Width 600-1250mm
High Light

1.5mm G90 Galvanized Steel Sheet

,

Galvanized Steel Sheet Z275

,

1.5mm gi plain sheet

Leave a Message
Product Description
ASTM SGCC 0.2mm 1.5mm Z275 Galvanized Steel Metal Sheet Plate

Production Description

  Galvanized sheets are used in automobile manufacturing, refrigerated containers, construction, ventilation and heating facilities, and furniture manufacturing. Galvanizing has become an important method of steel anticorrosion, not only because zinc can form a dense protective layer on the surface of steel, but also because zinc has a cathodic protection effect. When the galvanized layer is damaged, it can still prevent iron mothers through cathodic protection. Materials corrode the roofs, roof components, balcony panels, window sills, newsstands, warehouses, rolling doors, heaters, rainwater pipes and other household appliances in the construction industry.

  Refrigerators, washing machines, switch cabinets, air conditioners, microwave ovens, bread machines, photocopiers, vending machines, electric fans , Vacuum cleaners and other furniture industries such as lampshades, wardrobes, tables, bookshelves, counters, signs, medical equipment and other transportation industries, automobile ceilings, car shells, compartment panels, tractors, trams, containers, highway walls, ship bulkheads and other aspects of musical instrument shells , Trash cans, billboards, clocks and watches, photographic equipment, gauges, etc. Galvanized sheet, application scope, use category, building exterior, building interior furniture, household appliance substrate category Zinc plate, the current technology of galvanizing industry in our country has been rapidly developed, the solid form of galvanized steel can be changed, so that the scope of use of galvanized steel continues to expand. For example, galvanized sheet steel products are mainly used in construction


Specification

Equivalent Material



Grade Euronorm China GB Japanese JIS US ASTM German
EN10130-2006 GBT 2518-2008 JIS: G3302-2005 ASTM A653M Q/SGZGS 324.3-2011
DX51D+Z DC01 DC01 SPCC CS TypeC St12
DX52D+Z DC03 DC03 SPCD CS TypeA TypeB St13
DX53D+Z DC03 DC03 SPCE CS TypeA TypeB St14
DX54D+Z DC06 DC06 SPCG EDDS St16



Standard Specification



Thickness 0.12~4mm
Width 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length 1000-6000 or Since the custom
Surface Normal (uneven) spangle/ Skinpassed spangle/ Regular spangle / Minimized spangles
Form coils, Foils, Rolls, Plain coils, Shim coils, Perforated coils, Chequered coils, Strips, Flats,
Blank (Circle), Ring (Flange) etc.

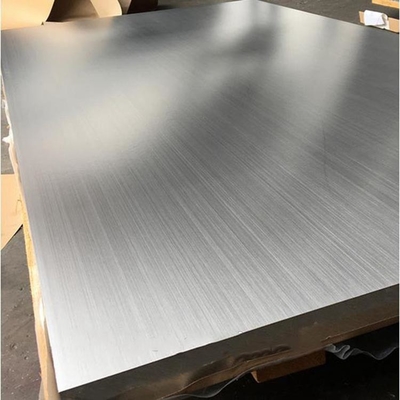

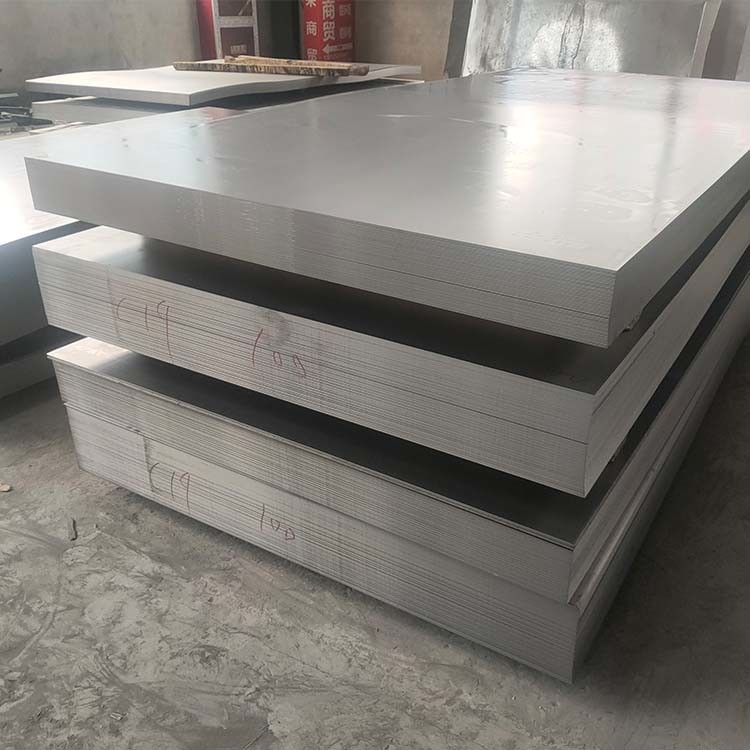

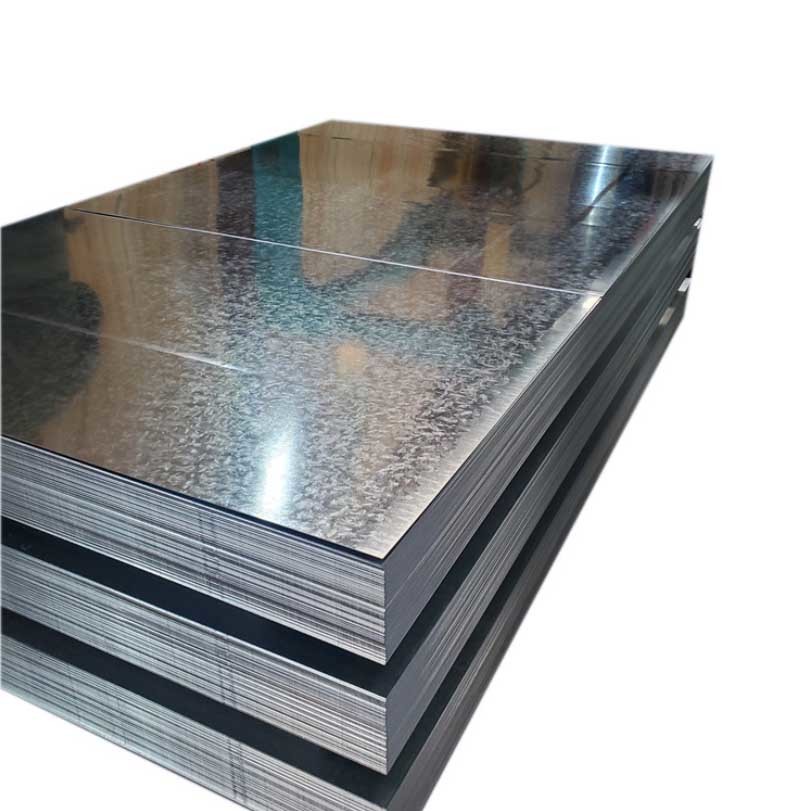

Product Pictures

ASTM 0.2mm 1.5mm G90 Galvanized Steel Sheet Z275 SGCC Regular Spangle 0ASTM 0.2mm 1.5mm G90 Galvanized Steel Sheet Z275 SGCC Regular Spangle 1ASTM 0.2mm 1.5mm G90 Galvanized Steel Sheet Z275 SGCC Regular Spangle 2







FAQ:

Q1. What are your company's main products?
A1: Our main products are Galvanized Steel Coil, Galvanized Steel Sheet, PPGI Steel Sheet, GI Roofing Sheet, PPGI Steel Coil etc.

Q2. How do you control quality?
A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO, SGS, Alibaba Verified.

Q3. What are the advantages of your company?
A3: We have specialized in the steel business for years, so we have mature production technology, stable capacity, more competitive prices,
we are dedicated to strict quality control and thoughtful customer service.

Q4. Can you provide a sample?
A4: We can provide the same samples in stock for free, as long as you contact us.



About us:



Wuxi Wilke Metal Materials Co., Ltd. is a leading supplier of high-quality galvanized steel materials. Established in 2012 in Wuxi, China, the company has quickly become a reputable and reliable supplier of metal materials to customers around the world.



At Wuxi Wilke Metal Materials Co., Ltd., we pride ourselves on providing superior quality products that meet international standards. Our products are sourced from reputable manufacturers who have a proven track record of delivering high-quality materials. We have established long-term relationships with these manufacturers, which enables us to offer our customers competitive prices and consistent product quality.
