Z30 Z275 Zinc Coated Iron Sheet Galvanized Steel Sheet For Air Conditioning

Place of Origin China
Brand Name WILKE
Model Number A36 Q235 S235JR
Minimum Order Quantity 5 tons
Price Negotiation
Packaging Details rust proof paper protected and bundled bu iron belt
Delivery Time 3-21work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 10000+ton/tons+month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Technique Hot Rolled Based, Cold Rolled&Hot Rolled Standard AiSi, ASTM, Bs, DIN, GB, JIS
Surface Treatment Galvanized, Clean,Coated Or As Required Length As Customers Required
Technology Hot Rolled Cold Rolled Special Use High-strength Steel Plate
Zinc Coating 30-275g/m2 Width 600mm-1500mm, 100mm~2500mm
High Light

z30 zinc coated iron sheet


air conditioning zinc coated iron sheet


z275 galvanized steel sheet

Leave a Message
Product Description
Factory price Z30 Z275 zinc coated iron sheet galvanized steel sheet for air conditioning
Production Description

  Hot-dip galvanized steel sheet. The thin steel plate is immersed in the molten zinc tank, so that a thin steel plate with a layer of zinc is adhered to the surface. At present, it is mainly produced by continuous galvanizing process, that is, continuous immersion of rolled steel sheets in a galvanizing tank with molten zinc to make galvanized steel sheets; alloyed galvanized steel sheets. This kind of steel plate is also manufactured by hot dipping, but immediately after it is discharged from the tank, it is heated to about 500°C to form an alloy film of zinc and iron. This kind of galvanized sheet has good paint adhesion and weldability; electro-galvanized steel sheet. The galvanized steel sheet produced by the electroplating method has good workability.

  It is suitable for the sealing and anti-rust treatment of galvanized sheets, metal product components and materials. The upper flux immerses the steel components in the mixture of zinc chloride and ammonium chloride to isolate the surface of the components from the air to prevent oxidation and rust. And activate the surface iron molecules, so that the components can more easily achieve the iron-zinc compound reaction in the hot zinc solution; MIG arc brazing can be used to weld low-alloy steel, non-alloy steel and stainless steel, and the main purpose is to weld steel plates with coating on the surface. The heat brought by the droplet transfer causes the galvanized layer to volatilize, and the zinc vapor entering the molten pool is very small, and it continues to be discharged during the solidification process, so there are very few residual pores in the weld. Main applications: construction engineering, machinery manufacturing, container manufacturing, shipbuilding, bridges, etc.




Thickness: 0.3-150mm
Width: 1000,1250,1500,2000 or customized
Length: 2500,3000,6000 or customized
Standard: ASTM-A653,ASTMa153JIS G3302EN10147,etc.
Zinc Coating: Z30g-275g/m2
Surface Structure: Regular spangle,Minimum spangle, Zero spangle, Bigspangle
Hardness: Soft Hard(HRB 60),Medium Hard(HRB60-85),Full Hard(HRB 85-95)
Surface Treatment: Oiled(O), Chromium @Phosphating(P),SpinpassResistant to Fingerprints(AFP)

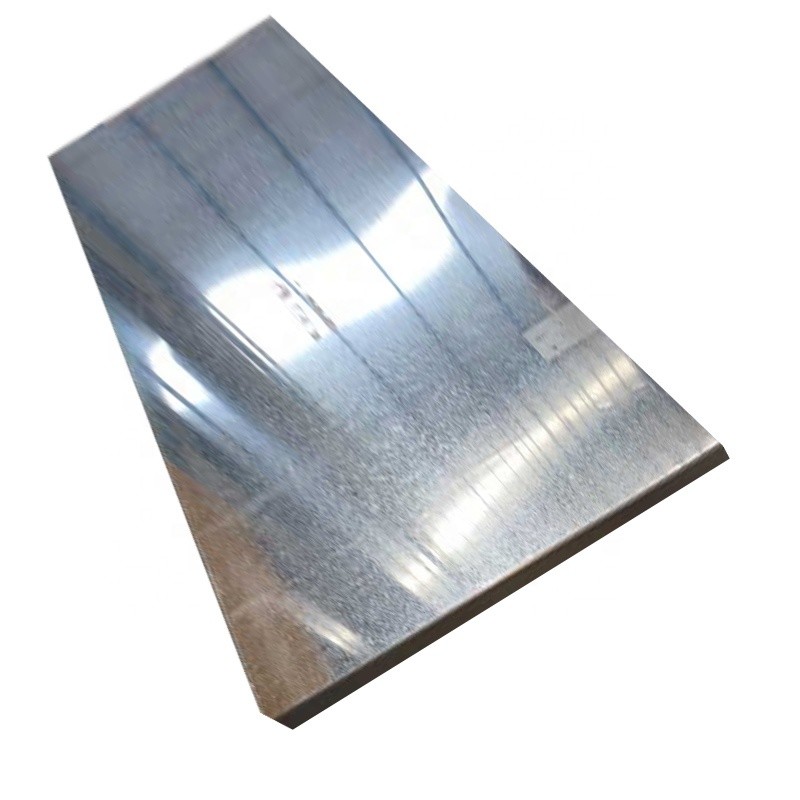

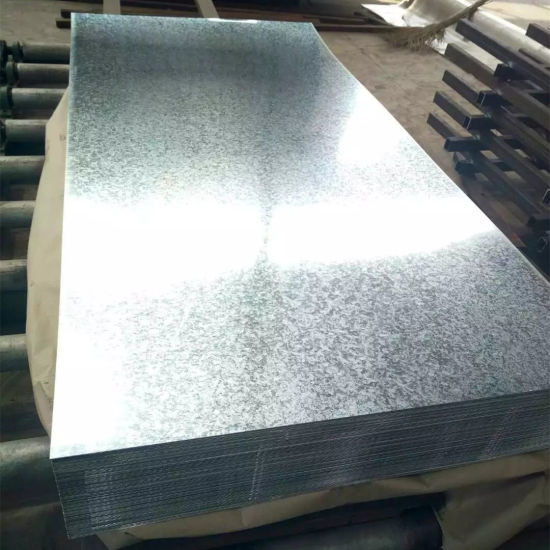

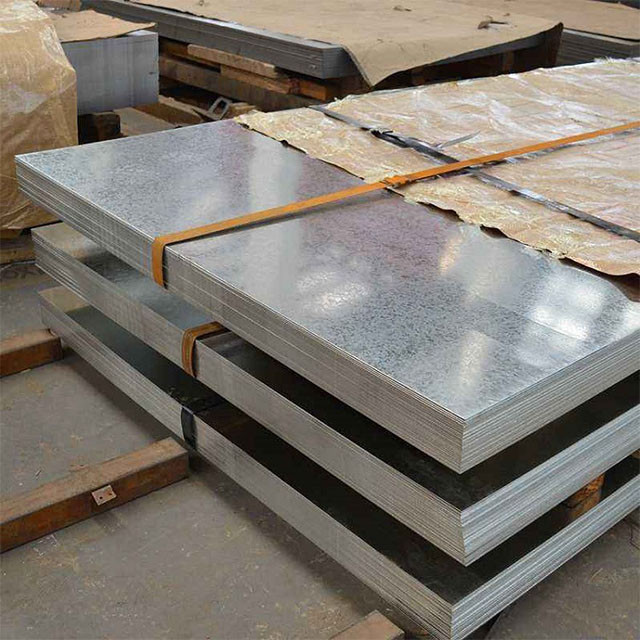

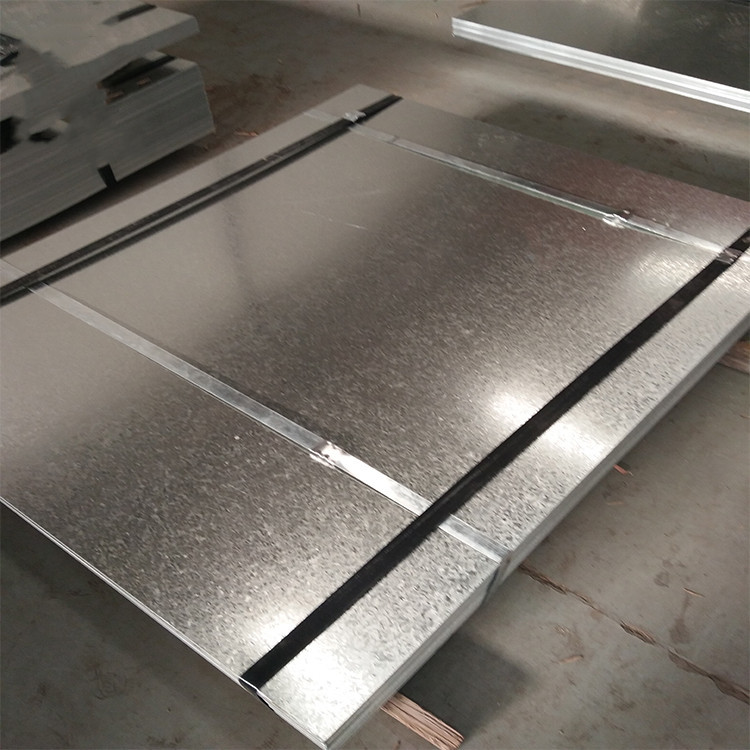

Product Pictures

Z30 Z275 Zinc Coated Iron Sheet Galvanized Steel Sheet For Air Conditioning 0Z30 Z275 Zinc Coated Iron Sheet Galvanized Steel Sheet For Air Conditioning 1Z30 Z275 Zinc Coated Iron Sheet Galvanized Steel Sheet For Air Conditioning 2






Q1. What are your company's main products?
A1: Our main products are Galvanized Steel Coil, Galvanized Steel Sheet, PPGI Steel Sheet, GI Roofing Sheet, PPGI Steel Coil etc.

Q2. How do you control quality?
A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO, SGS, Alibaba Verified.

Q3. What are the advantages of your company?
A3: We have specialized in the steel business for years, so we have mature production technology, stable capacity, more competitive prices,
we are dedicated to strict quality control and thoughtful customer service.

Q4. Can you provide a sample?
A4: We can provide the same samples in stock for free, as long as you contact us.
